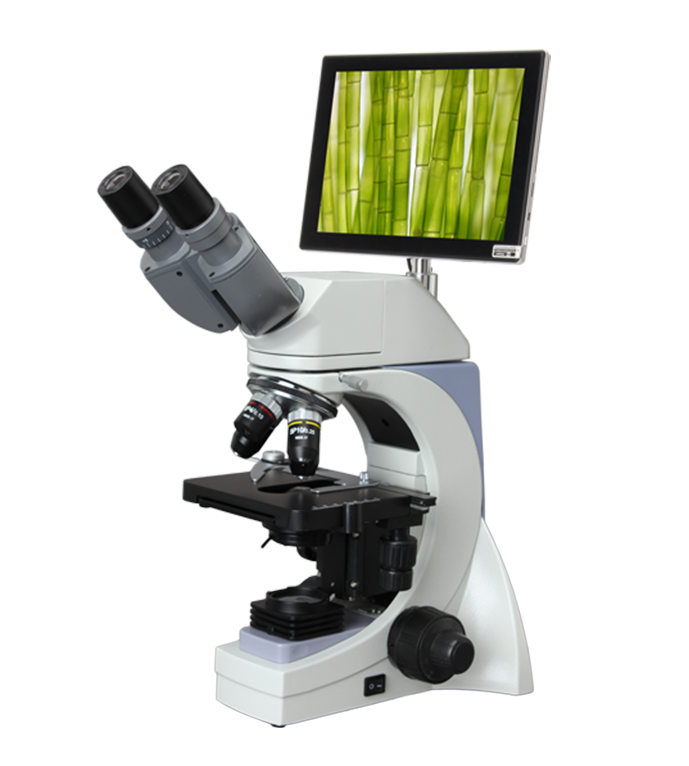

NLCD-120E Technical specifications

Digital part

　5.0 Mega Pixels CMOS Chip

　Support Wifi and Bluetooth

Viewing Head

　Compensation Free binocular head, 30° inclined, Interpupillary 52-75mm

Eyepiece

　Wide Field Eyepiece WF10X/18

Objective

　Semi-Plan Achromatic Objective 4X、10X、40X、100X

Nosepiece

　Quadruple Nosepiece

Stage

　Double Layers Mechanical Stage 140X140/75X50

Condenser

　Sliding-in centerable condenser NA1.25

Illumination

　6V/20W Halogen Lamp Illumination, Adjustable Brightness

　S-LED Illumination, Adjustable Brightness

LCD Screen

　9.7 Inch LCD（2048*1536）

Output

　USB2.0、Mini HDMI、3.5mm headphone

OS

　Android 5.1

Software

　S-EYE

SD Card

　Support TF Card

Mouse

NLCD-120F Technical specifications

Digital part

　5.0 Mega Pixels CMOS Chip

　Support Wifi and Bluetooth

Viewing Head

　Compensation Free binocular head, 30° inclined, Interpupillary 52-75mm

Eyepiece

　Wide Field Eyepiece WF10X/18

Objective

　Infinite Semi-Plan Achromatic Objective 4X、10X、40X、100X

Nosepiece

　Quadruple Nosepiece

Stage

　Double Layers Mechanical Stage 140X140/75X50

Condenser

　Sliding-in centerable condenser NA1.25

Illumination

　6V/20W Halogen Lamp Illumination, Adjustable Brightness

　S-LED Illumination, Adjustable Brightness

LCD Screen

　9.7 Inch LCD（2048*1536）

Output

　USB2.0、Mini HDMI、3.5mm headphone

OS

　Android 5.1

Software

　S-EYE

SD Card

　Support TF Card

Mouse
