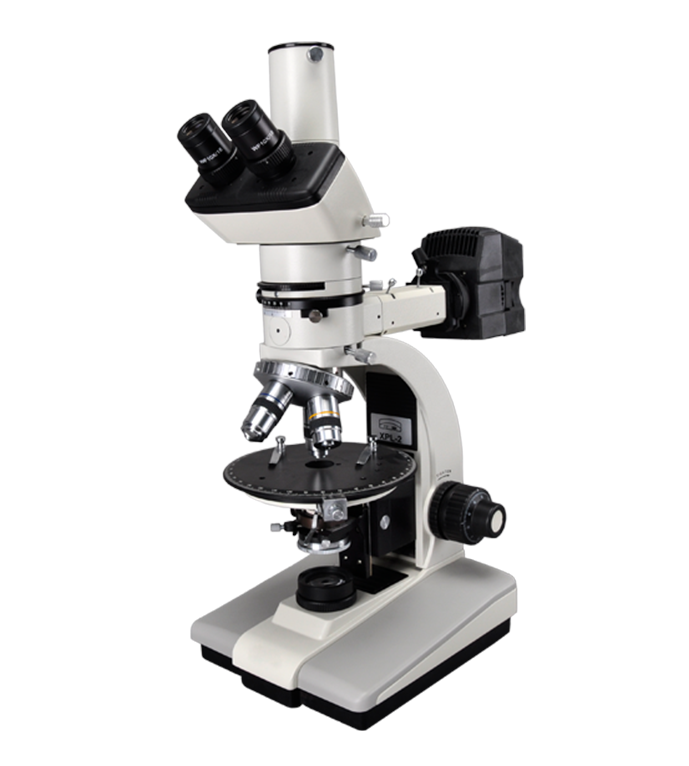

Polarizing Microscope XPL-2 /XP-221

Polarizing microscope for normal inspection and education.

Widely used in crystallography, Geology, Analytical chemistry, Medicine, Biology, Environmentalology, Pharmacy, Toxicology, Asbestos analysis and so on.

Single polarization, Othorgonal polarization or conoscopic observation is available.

Download

Technical Specifications

XPL-2　Infinite optical system
Viewing Head	Sliding binocular viewing head, Inclined at 45°
Viewing Head	Sliding trinocular viewing head, Inclined at 45°
Eyepiece	WF10X/18
	Eyepiece WF10X/18 with cross hair
	Reticle plate
	Grid plate
Objective	Strain free achromatic objective 4X/0.10/-、10X/0.25/-
	Strain free achromatic objective 25X/0.40/0.17、40X/0.65/0.17、63X/0.85/0.17
	Strain free plan achromatic objective 25X/0.40/0、40X/0.65/0、63X/0.85/0
	Lamp house adjustment objective
Nosepiece	Backward quadruple nosepiece, Center adjustable
Analyzer	Bertrand lens, Sliding in/out of optical path
Bertrand Lens	Bertrand lens, Sliding in/out of optical path
Optical Compensator	λ Slip（first class red）, 1/ 4λ Slip, Quartz wedge
Revolving Round Stage	Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale
Condenser	NA1.25 Abbe condenser with iris diaphragm & filter
Focusing	Coaxial coarse & fine adjustment, Range 26mm, Fine division 0.002mm
Polarizer	Polarizer，360° Rotatable
Illumination	12V/ 20W Halogen Lamp, Brightness Adjustable（Transmitted illumination）
Illumination	12V/ 50W Halogen lamp, Brightness adjustable（Reflected illumination）
Accessories	Mechanical stage, Moving rang 30X40mm
	Specimen presser
	Micrometer

XP-221　Infinite optical system
Viewing Head	Sliding binocular viewing head, Inclined at 45°
Viewing Head	Sliding trinocular viewing head, Inclined at 45°
Eyepiece	WF10X/18
	Eyepiece WF10X/18 with cross hair
	Reticle plate
	Grid plate
Objective	Strain free achromatic objective 4X/0.10/-、10X/0.25/-
	Strain free achromatic objective 25X/0.40/0.17、40X/0.65/0.17、63X/0.85/0.17
	Strain free plan achromatic objective 25X/0.40/0、40X/0.65/0、63X/0.85/0
	Lamp house adjustment objective
Nosepiece	Backward quadruple nosepiece, Center adjustable
Analyzer	Rotatable analyzer with gradation 0°-90°
Bertrand Lens	Bertrand lens, Sliding in/out of optical path
Optical Compensator	λSlip（first class red）, 1/ 4λ Slip, Quartz wedge
Revolving Round Stage	Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale
Focusing	Coaxial coarse & fine adjustment, Range 26mm, Fine division 0.002mm
Polarizer	Polarizer
Illumination	12V/ 50W Halogen lamp, Brightness adjustable（Reflected illumination）
Accessories	Mechanical stage, Moving rang 30X40mm
	Specimen presser
	Micrometer
