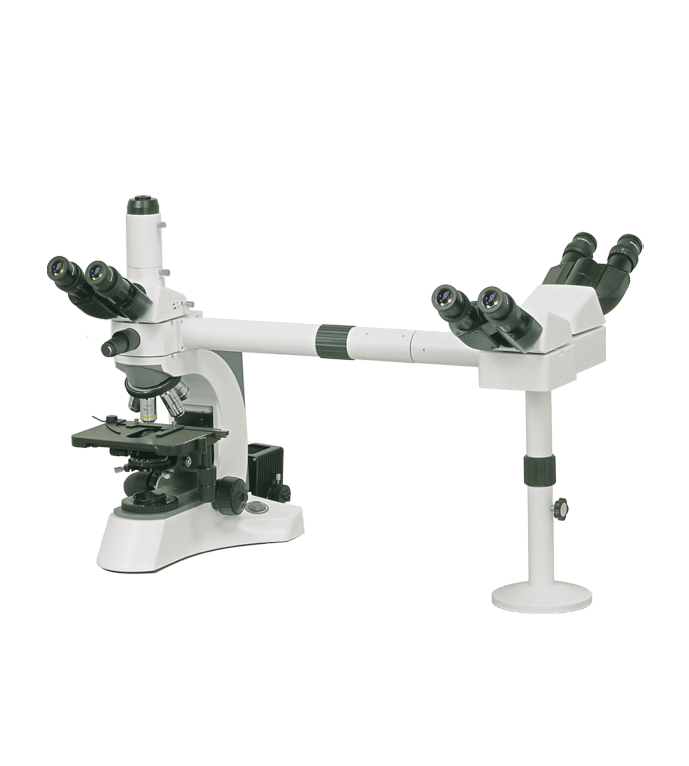

Multi-viewing Microscope N-360 Series

Multi-viewing microscopes allow people to observe specimen at the same time.

With the features of infinite optical system, effective illumination, LED pointer and images.

coherence, it is widely used in clinic, scientific research and teaching demonstration.

Technical Specifications

Optical System	Infinite Optical System
Viewing Head	Seidentopf Type Trinocular Head , Inclined at 30°，Interpupillary 48-75mm
Viewing Head	Tiltable Binocular / Trinocular Head
Eyepiece	Extra Wide Field Eyepiece EW10×/23, Eyepiece Tube Diameter 30mm
Nosepiece	Backward Quintuple Nosepiece
Objective	Infinite Plan Achromatic Objective 4×, 10×, 40×,100×
	Infinite Plan Achromatic Objective 20×,60×
	Plan S-Apo Objective 4×, 10×, 20×, 40×,100×
Condenser	NA0.9/ 0.25 Swing Condenser N.A.0.9/0.25
Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm
Stage	Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
Kohler Illumination	External Illumination, Asperical Collector, Halogen Lamp 6V/ 30W
	External Illumination, Asperical Collector, Halogen Lamp 24V/ 100W
	LED Illumination,3W or 5W
Photo Attachment
Video Adapter	C Mount 1×
Video Adapter	C Mount 0.5×
Polarization Attachment
Turret Phase Contrast Kit
Dark Field Attachment	Dark-field Condenser (Dry)
Dark Field Attachment	Dark-field Condenser (Oil)
Epi-Fluorescent Attachment	Mercury lamp or LED Illumination
